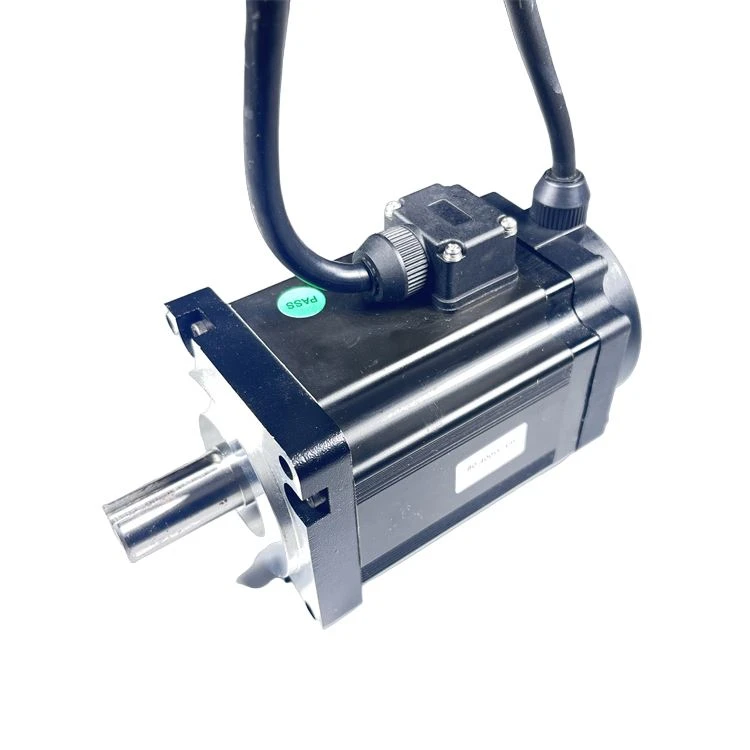

AC Servo Motor 400w
AC Servo Motor 400w

AC Servo Motor 400w

Zkseasy is proud to introduce two ac servo motor 400w, featuring 60mm and 80mm flange diameters to cater to the diverse needs of various application scenarios. Both motors deliver a powerful 400W output power, but they are designed with distinct characteristics, offering users an extensive range of choices.
Send Inquiry
modular-1
AC Servo Motor 400w

Zkseasy has independently launched two ac servo motor 400w models, respectively equipped with 60 mm and 80 mm flange specifications. Both motors have a rated power of 400 W, with solid performance and wide adaptability. However, they have different emphases in body structure, electrical parameters, and operating characteristics. They can be targeted to different installation spaces and equipment working conditions, providing users with selection solutions that better match equipment needs.



I. Differences in Body Structure and Stability Performance

The Zkseasy 60 mm and 80 mm flange motors differ clearly in mounting dimensions, body structure, and operating stability, adapting to different installation environments and operating conditions:



60 mm flange motor:

Body length 98.4 mm, compact and streamlined structure, suitable for equipment scenarios with limited installation space. The motor has relatively low rotor inertia, making it suitable for standard automation equipment that runs conventionally and stably and requires frequent start-stop, with stable performance during daily continuous operation.

80 mm flange motor:

Larger flange size, body length only 84.7 mm, higher integration, more flexible installation, and more space-saving. Its rotor inertia can reach 0.62×10⁻⁴ kg·m². The high-inertia structure makes the motor less prone to vibration during high-speed operation and large-load carrying, with strong fault tolerance and more outstanding operating stability and control accuracy.

0



II. Core Product Advantages


The two motors have their own advantages in electrical parameters and torque performance, corresponding to different equipment performance requirements:

60 mm flange motor

Line inductance only 6.67 mH, low electrical loss, stable and reliable operation. Torque coefficient up to 0.44 N·m/A. Under the same current input, torque output is greater and power is stronger, making it very suitable for working scenarios requiring heavy-load startup and high-torque drive. Rated current 2.9 A; parameters are suitable for long-term operation needs of conventional small and medium-sized automation equipment.

0

80 mm flange motor

Line inductance 21.24 mH, rated current 3.4 A, more balanced electrical configuration, faster dynamic response, and excellent resistance to load fluctuations. Torque coefficient 0.37 N·m/A; torque output is smooth and balanced, without deliberately pursuing extreme torque, with more emphasis on overall dynamic performance and operating stability of the equipment.

1







III. Scenario Adaptability and Selection Recommendations


The two ac servo motor 400w models from Zkseasy have clear positioning emphases. Users can select according to actual on-site working conditions. If the equipment installation space is limited and there are higher requirements for instantaneous torque and heavy-load drive performance, the 60 mm flange 400 W motor is preferred, combining compact size with strong power. If the equipment focuses on high-speed operation stability and dynamic response speed and needs to handle complex load fluctuation conditions, the 80 mm flange 400 W motor is a more suitable choice.


Widely applicable industries: The products cover a full range of application scenarios and can be used in various industrial automation fields such as machine tool equipment, automated production lines, articulated robots, and electronic manufacturing equipment. Both motors are original-factory precision products with stable performance and wide adaptability, fully meeting the precision drive needs of various small and medium-sized automation equipment.





 0                 1

                        Articulated robots                                         Automated production lines







[Customer Case]



Customer background:

A domestic robot equipment R&D company mainly engaged in the R&D and production of lightweight robotic arm automation equipment. The equipment is mainly used in automated precision operation scenarios and requires small-size, stable-precision servo motors as the core of joint drive.

01

Selection process:

The customer's equipment needs the forearm and elbow joints of the robot to continuously perform forearm swing and elbow flexion/extension movements. The overall workload is medium. At the same time, the joint installation space is compact, with clear requirements for motor size, running smoothness, and positioning accuracy. After comparative testing of multiple motors, the customer finally selected the Zkseasy 60 mm flange 400 W servo motor, specifically for driving the robotic arm forearm and elbow joints.

02

Solution advantages:

This 400 W servo motor fully matches the customer's robot joint working conditions, with obvious adaptability advantages:
Strong body adaptability: The 60 mm flange body has a compact structure, and its dimensions fit the narrow installation space of robot joints.
Precise and stable motion control: The motor responds sensitively, runs smoothly, and controls trajectories accurately, meeting precision operation requirements.
Reasonable load adaptability: Power output is balanced, perfectly adapting to the equipment's medium workload. It can operate in long-term high-frequency reciprocating motion with stable working status.

03

Project results:

After the project was implemented in batches, the overall equipment operation was good. The robot forearm and elbow joint movements are coherent and smooth, positioning is precise, and there are no abnormalities in long-term high-frequency operation, fully meeting the equipment's automated operation needs. The stable product performance has won customer recognition and has now become the customer's long-term supporting selection solution for robotic arm equipment.

04



IV. Contact Us

Zkseasy servo motors are also available in 15, 20, 25, and 40 flange specifications from 10 to 400 W. If you have similar scenario requirements, please send specific requirements, actual application scenarios, etc. to info@zkseasy.com.



We will provide you with:

1. One-on-one business consultation for product selection

2. Product catalogs for relevant products



0000





Zkseasy products have complete CE, RoHS, and 16949 certifications. We support export shipping through multiple channels such as DHL international express and sea freight, and can flexibly match corresponding logistics solutions, balancing timeliness and transportation costs. From product quality control and qualification document provision to overseas logistics delivery, we provide full-process supporting support, earnestly solving various customer issues in the export process, and wholeheartedly providing global partners with reliable, stable products and foreign trade supporting services.
